Product Description:

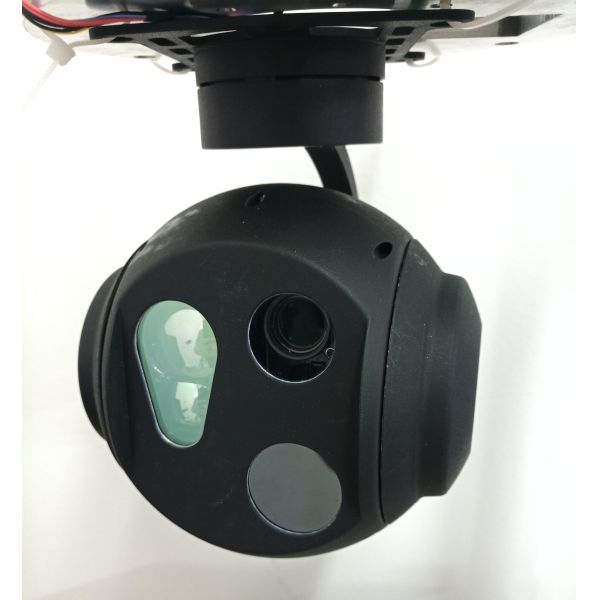

This gimbal is suitable for civilian UAVs, like the small UAVs of fixed-wing aircraft, rotary wing UAVs, and small unmanned helicopters, etc. It can realize the search, observation and tracking for ground and aerial targets, with the features of ultra-light weight, ultra-small size and super low consumption,etc, which will effectively reduce payload and extend flight time.
Features:
- High resolution daylight camera with 10.5× continuous zoom
- Uncooled IR camera with 25mm lens
- 1.5km laser range finder
- Manual/auto tracking
- Small size and light weight(only 750g)
Technical Parameters:
| SYSTEM PARAMETER | | | Gyro stabilization | 3-axis | | Range | Azimuth:-160°~+160° | | Elevation:-20°~+110° | | Roll:-30°~+30° | | Max. angular speed | ≥30°/s | | Stabilization accuracy | ≤1mrad | | IP grade | IP66 | | External interface | Power supply:DC12V | | Communication:TTL/RS232 | | Video:HDMI/MB Ethernet | | IR CAMERA | | | Detector | Uncooled FPA | | Resolution | 640×512 | | Pixel size | 12μm×12μm | | Spectral band | 8μm~14μm | | Focal length | 25mm | | FOV | 22°×17.6° | | DAYLIGHT CAMERA | | | Sensor | Colored CMOS | | Resolution | 1920×1080 | | Optical zoom | 10.5 × | | Focal length | 3.2~33.6mm | | HFOV | 62°~ 6.5° | | LASER RANGE FINDER | | | Wavelength | 905nm | | Divergence angle | 10mrad | | Range | 5~1500m | | Accuracy | ±5m | | PHYSICAL PARAMETER | | | Dimension | Φ120mm×168mm | | Weight | ≤750g | | Color | black | | ENVIRONMENTAL PARAMETER | | | Operating temperature | -20ºC~+55ºC | | Storage temperature | -30ºC~+65ºC | |
Packing and Shipping:
Packaging and Shipping for Electro Optical Tracking System
The Electro Optical Tracking System is packaged in a secure carton and shipped using a reputable courier service. All packages are tracked to ensure safe delivery.
All packages are shipped with the following:
- Secure carton
- Instructions and documentation
- Power adapter
- Appropriate cables
Company Profile:
Wuhan JOHO Technology Co., Ltd founded in 2009, is a high-technology company based on infrared thermal imaging technology. Joho has built a complete infrared industrial chain from the bottom up: from core component to comprehensive electro optical infrared surveillance and tracking system.We have two R & D base in Hubei Zhongxiang and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad.
Customer Distribution:
Products:
Our products includes thermal security cameras, electro-optics/infrared search and track system (EO/IR search and track system) and EO surveillance system, surveillance radar, laser range finder, fiber optical gyro, special power sources (thermal battery and silver-zinc battery Ag-zn battery) and OEM solutions,Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, Joho products are widely used in different applications, security and surveillance, law enforcement, maritime patrol, fishery administration, surveying and mapping and so on.
